Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate.

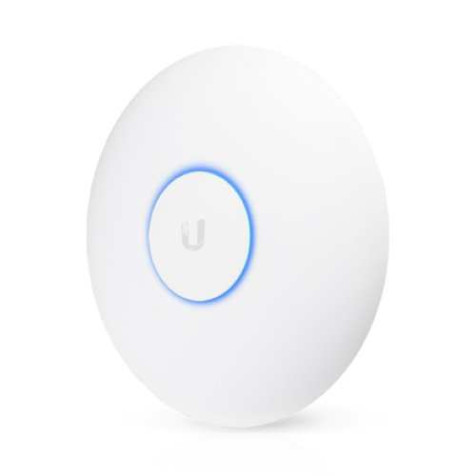

The Access Point AC Long-Range (UAP AC LR) is a high-performance, indoor 802.11ac WiFi access point that utilizes Wave 1 technology to reach a 1.2+ Gbps aggregate throughput rate with its 5 and 2.4 GHz bands. The UAP AC LR also has an impressively long transmission range of up to 183 meters (600 feet), allowing you to establish and sustain quality connectivity over greater distances. This access point is powered by either PoE or 24 V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC LR can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.
| Mechanical |
| Dimensions |
Ø175.7 x 43.2 mm (Ø6.9 x 1.7″) |
| Weight |
Without mount: 240 g (8.5 oz)
With mount: 315 g (11.1 oz) |
| Hardware |
| Networking interface |
(1) GbE port |
| Management interface |
Ethernet
Bluetooth |
| Power method |
PoE
24V passive PoE (Pairs 4, 5+; 7, 8 return) |
| Power supply |
UniFi PoE switch
24V, 0.5A Gigabit PoE adapter*
*PoE adapter In Box. |
| Max. power consumption |
6.5W |
Max.TX power
2 GHz
5 GHz |
24 dBm
22 dBm |
MIMO
2.4 GHz
5 GHz |
3 x 3
2 x 2 |
Throughput rate
2.4 GHz
5 GHz |
450 Mbps
867 Mbps |
Antenna gain
2 GHz
5 GHz |
3 dBi
3 dBi |
| Button |
Factory reset |
| Mounting |
Wall/ceiling (Included) |
| Operating temperature |
-10 to 70° C (14 to 158° F) |
| Operating humidity |
5 to 95% non-condensing |
| Certifications |
CE, FCC, IC |
| Software |
| WiFi standards |
802.11 a/b/g/n/r/k/v/ac |
| Wireless security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID |
Up to 8 per radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Power save |
Supported |
| WMM |
Voice, video, best effort, and background |
| Concurrent clients |
250+ 185 m² (2,000 ft²) coverage |
| Supported Data Rates (Mbps) |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
